This is a combined top - light comfort module for Opel Astra (H) TwinTop, > 2006
This modules combins the following features:
- One-Touch
- Top remote by original key remote
- SpeedX
- Mainswitch
- Curve light
- Daylight
- US-Hazard
- Coming Home
- Home Light
- Close Light
- Emergency Stop Hazard
- Chirp Module
One Touch:
You don't need to hold the top switch anymore until the top moving has ended. Just "push" on the switch and the top will open / close automatically.
Verdeckfernbedienung / Dachfernbedienung:
Open / close the top by using the original key remote. Push three times on the key remote and the top will open / close automatically.
While the top is moving you can start the engine and drive slowly.
SpeedX:
With this feature you can open / close the top while driving up to a speed of 35 km/h. Standard of the module is 55 km/h. At the modules installation menu you can choose between three speed settings - 35, 45 und 55 km/h.
Hauptschalter:
It is possible to deactivate the module completely.
Curve Light:
If the headlight is turned on, the curve light will work up to a driven speed of 30 km/h if you use the indicator. In this case the curve light (both fog lights) will be switched on for a few seconds automatically.
Daylight:
After starting the engine the headlight, fog light or light (you can choose individually at the setup menu) will be activated as daylight, if the headlight has not activated manually or by automatic. In this case all other lights of the car (taillight, instrument lighting) will not be activated.
This feature works with the original light automatic sensor. If the headlight will be turned on by automatic, the daylight will be switched off.
Coming Home:
After driving with headlight and turning off the ignition first and then the headlight, this feature will light up for a setup time. At the setup menu you can choose between light, headlight, foglight and high beam of a combination of these for this feature. As time of activation you can set a time between 15 and 75 seconds.
Auffindbeleuchtung:
If you open the car by original key remote the Home Light will be activated for 15-60 seconds. At the setup menu you can choose between light, headlight, foglight and high beam, indicator, taillight or of a combination of these. As time of activation you can set a time between 15 and 60 seconds.
Close Light:
This feature is the same as Home Light only when closing.
Emergency Stop Hazard:
If you are driving more than 60 km/h and make an emergency brake the hazard signal will be turned on automatically for about 10 signals to warn the cars behind you.
Chirp module:
It is possible to use the original horn for an accousitc signal when the car will be opened or locked by original key remote. At the setup menu you can choose if this feature should work on opening, closing or both. At the setup menu it is possible to chosse between three volumes.
For this feature you need an external 12V+ horn which is not included.
The top module does not influence any functions of the car.
The top modules of XCar-Style are made of a high quality standard and are Made in Germany.
Note:
For the installation you do not need any special tool.
Installation:
The installation can be done by yourself. A detailed, illustrated manual shows the installation step by step.
Delivery:

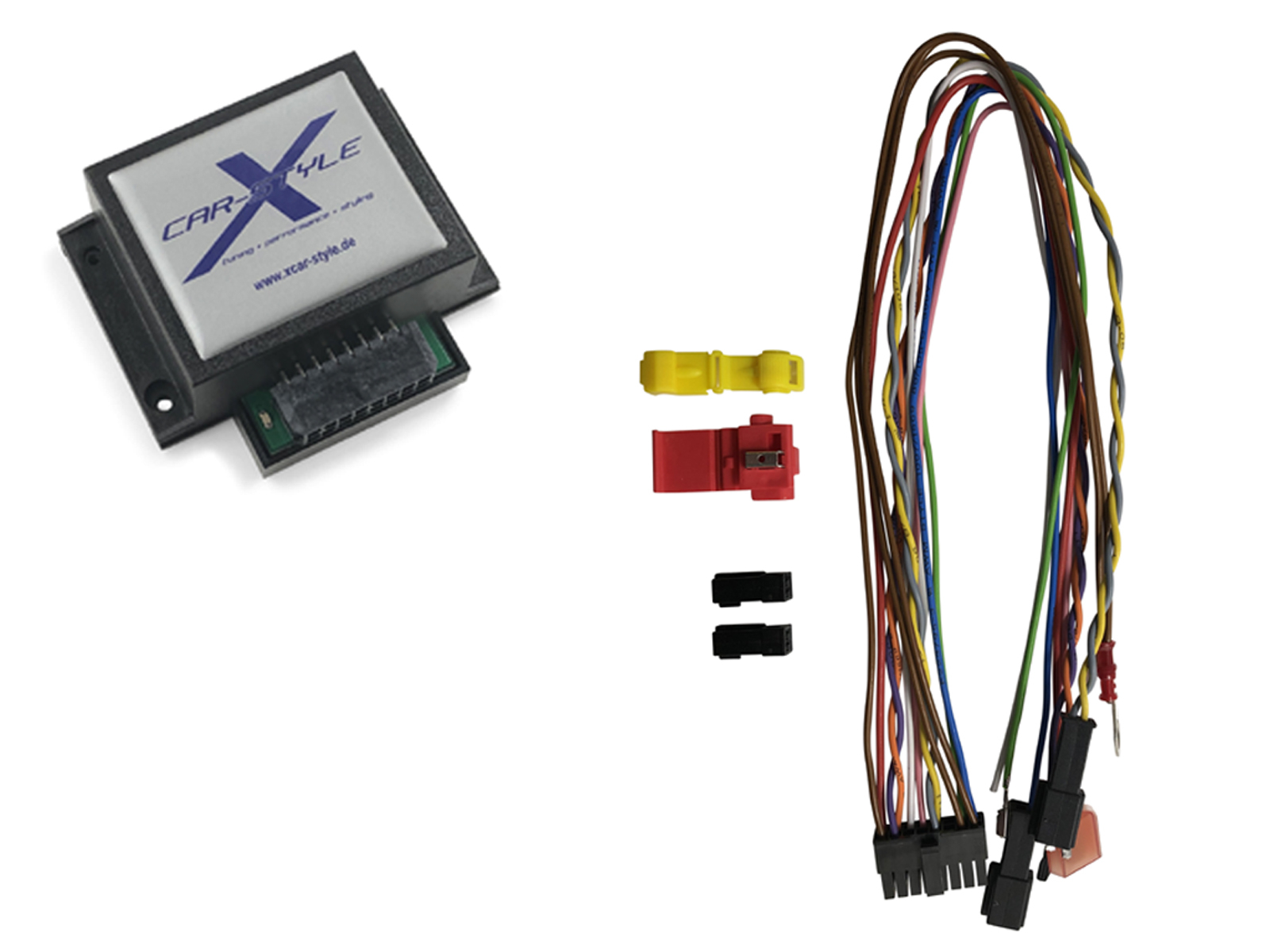

- Top-light comfort module Opel Astra (H) Twintop AIO-ML Module
- Connection material
- Detailed, illustrated manual.
Technical data:
Voltage: 8-18V DC
Power consumption: <1mA Standby / max. 70 mA Use
Temperature: -40 °C bis +85 °C
Dimensions (B x T x H): 68 x 58 x 24 mm
