Advanced Bordcomputer Module (Add-on module for expanding the bordcomputer) for BMW Z4 (E85/E86), all years
It is possible to use this Advanced Bordcomputer-Module also with this modules:
AIO top comfort module
Multi Light Module
Requirement:
Prerequisite is a original BMW radio system with RDS features or a original BMW navigation system. A bordcomputer with available "BC-button" is also required.
Functionality:

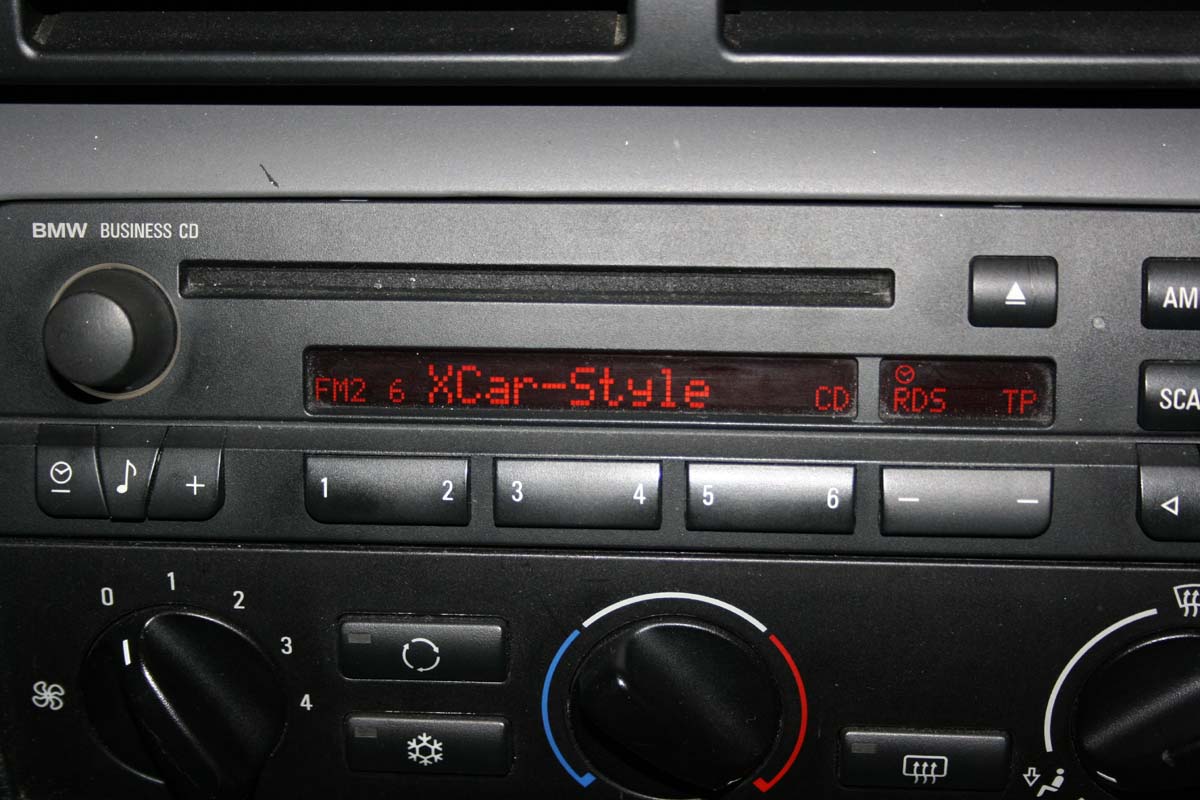

For activating the Avanced Bordcomputer, push and hold the "BC-button" for one second. At the display the start text of the menu will be showen. With the "BC-button" you can scroll at the menu. Push the "BC-button" again for one second to deactivate the menu. The serial feature of the "BC-button" can still be used.
These features are integrated:
- Battery voltage (0,1 V steps) - Example of display: "Batt: 12.1V"

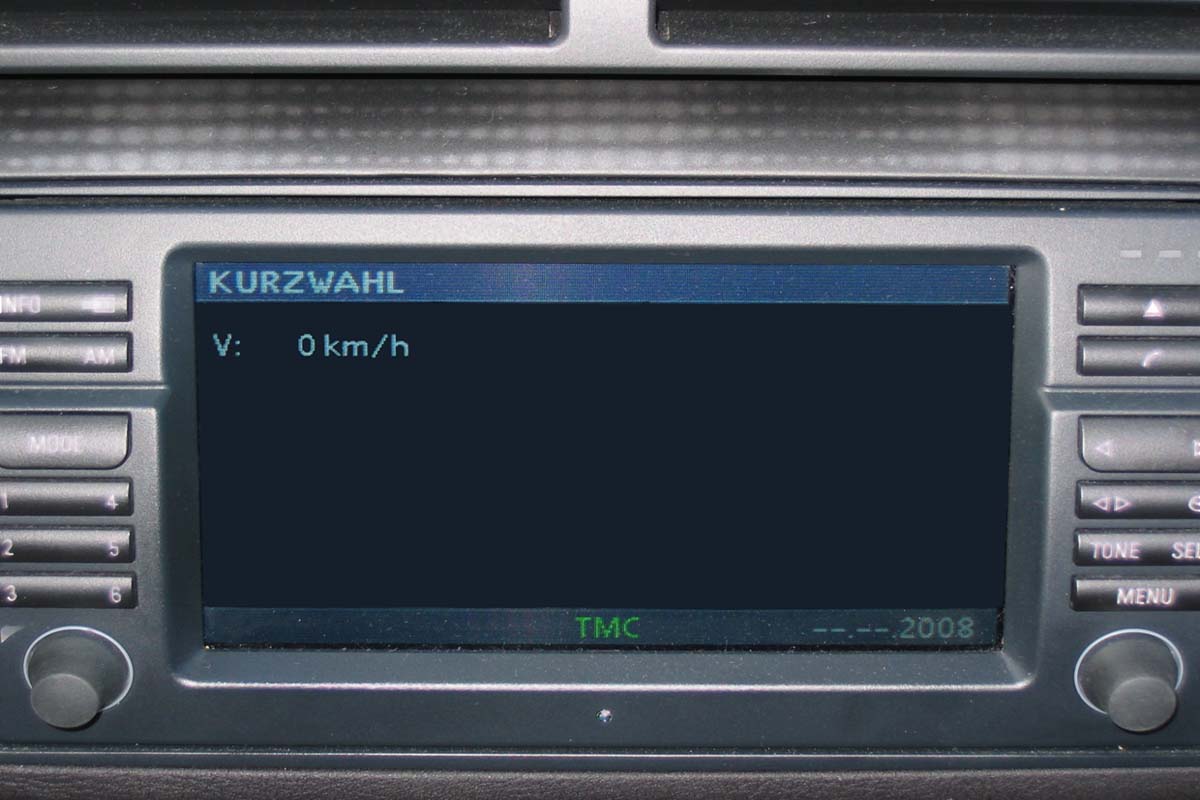

- Speed display (2 km/h steps; display in km/h or mp/h) - Example of display: "V:60 km/h"
- Engine speed (100/s steps) - Example of display: " RPM: 800"
- Acceleration (100mG/s steps) - Example of display: A: 200 mG"
- Cooling water temperature (1°C steps) - Example of display: "Water: 90°C"
- Oil temperature (1°C steps) - Example of display : "Oil: 80°C" - built in oil sensor required !
- Distance counter (0,1km steps) - Example of display : "KM:2,3 km"
This featues counts the driven distance. By entering the key the counter wil set on 0 and the last trip saved. With the intervall wheel at the whiperlever you can navigate between the actual and four saved trips.
- Time (1 Min steps) - Example of display : "Time: 12:10"
By entering the key the counter wil set on 0. At the display you can always see the actually time.
Installation:
The installation can be done by yourself. A detailed, illustrated manual shows the installation step by step.
Delivery:
- Module BMW Z4 (E85/E86) Advanced Bordcomputer (ABC)
- Connection material
- Detailed, illustrated manual
Technical data:
Voltage : 8-18V DC
Power consumption : <1mA Standby / max. 70 mA Use
Temperature: -40 °C bis +85 °C
Dimensions: (B x T x H): 68 x 58 x 24 mm
